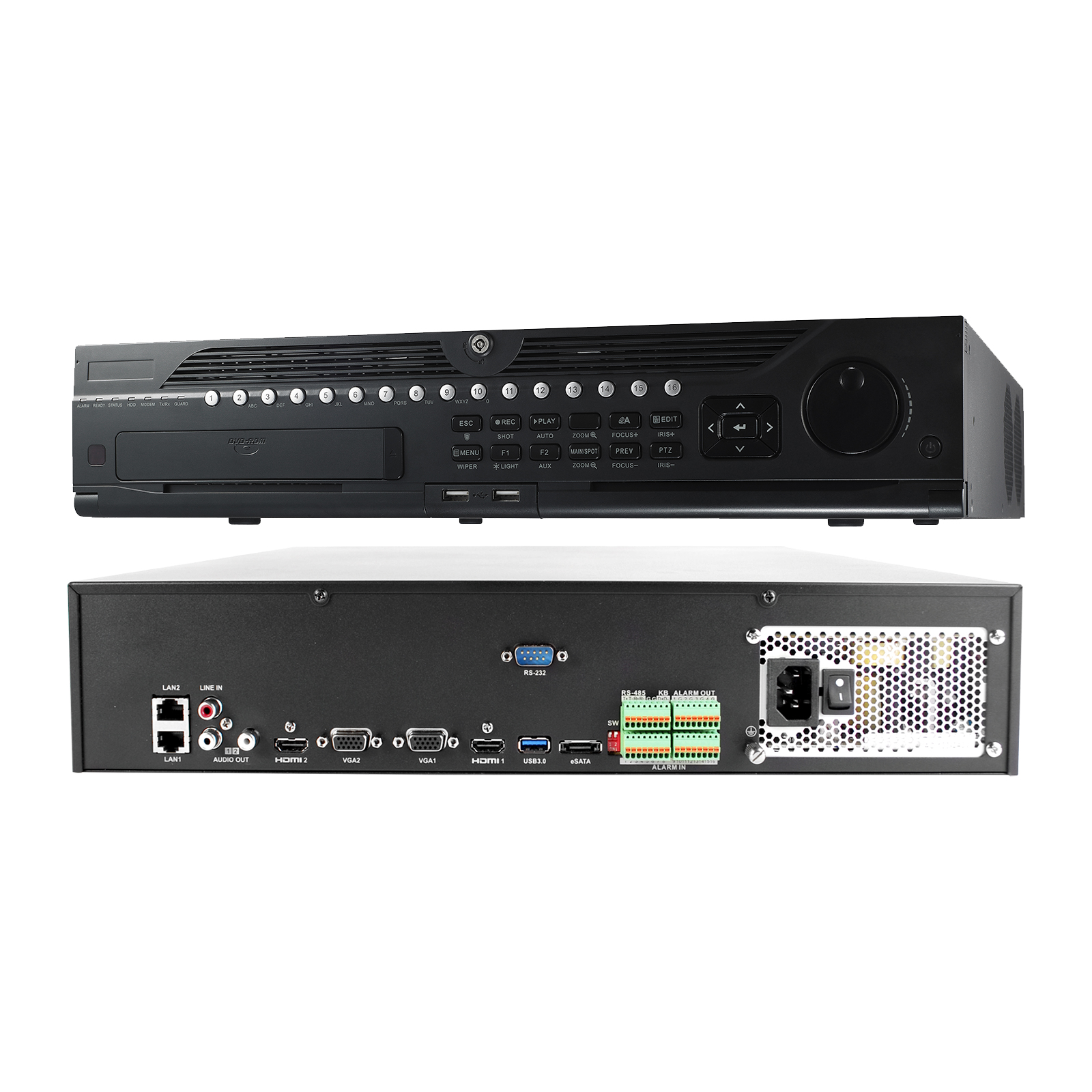

NVR 64 CANALES HIKVISION (12mpx)

NVR IP. 64CH con una resolución de 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p . Códec H.265/H.265+/H.264/H.264+, MPEG4 dual-stream. velocidad de entrada de 320Mbps y salida 256Mbpps, X2 HDMI independientes 4K. Resolución: 4K (3840 × 2160), VGA X1 Resolución: 1080p (1920 × 1080), Salida de audio X1 RCA, 16 interfaces SATA de 10TB c/u, Extensión de almacenamiento 1 × interfaz eSATA, (Soporta RAID0, RAID1, RAID5, RAID10 para RAID, se exige por lo menos 3 HDD de 4TB) interfaz Ethernet autoadaptativa RJ45 10M / 100M / 1000M, 1-ch, RCA, 1 RS-485, 2 × USB 2.0; Rear Panel: 1× USB 3.0, Entrada / salida de alarma 16/4, 100 to 240 VAC, 2U chassis.




Decoding
Decoding formatH.265/H.265+/H.264/H.264+/MPEG4
Video resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback16-ch
Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Auxiliary interface
Alarm in/out16/4

Network
Incoming/outgoing bandwidth320 Mbps or 200 Mbps (when RAID is enabled),256 Mbps, or 200 Mbps (when RAID is enabled)
Remote connections128

External interface
Network interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial portRS-232; RS-485; Keyboard
USB interfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General
Power supply100 to 240 VAC, 50 to 60 Hz 200 W
Consumption (without HDD)? 30 W
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10 to 90 %
Dimensions (W × D × H)445 × 470 ×90 mm (17.5× 18.5 × 3.5)
Weight (without hard disk)? 10 kg (22 lb)

Video/Audio input
IP video input64-ch Up to 12 MP resolution
Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k ?)

Video/Audio output
Recording resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
CVBS output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
VGA1 /HDMI1 outputHDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzVGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA2 /HDMI2 output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,2-ch, RCA (2.0Vp-p, 1 K?)

Network management
Network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS

Hard disk
SATA8 SATA interfaces
eSATA (optional)1 eSATA interface
CapacityUp to 10TB capacity for each HDD

Disk array
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
Number of arrays4
